Want to buy Duplex Ball Valve in India OR Are You Looking Trusted Suppliers of 2205 Ball Valve and Duplex Valves in India

Citizen Metal Manufacturers & Suppliers of Duplex Ball Valve, Duplex Swing Check Valve, Butterfly Valve, Wafer Check Valve, Needle Valve, Plug Valve, Safety Valve, Globe Valve and Duplex 2205 Gate Valve in India.

Specialist in Valves, Flanges, Pipes, Tubes

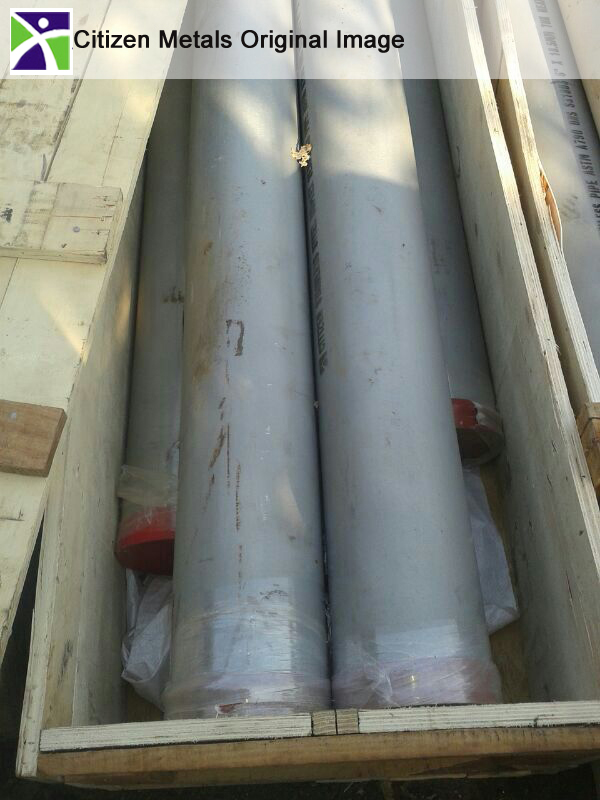

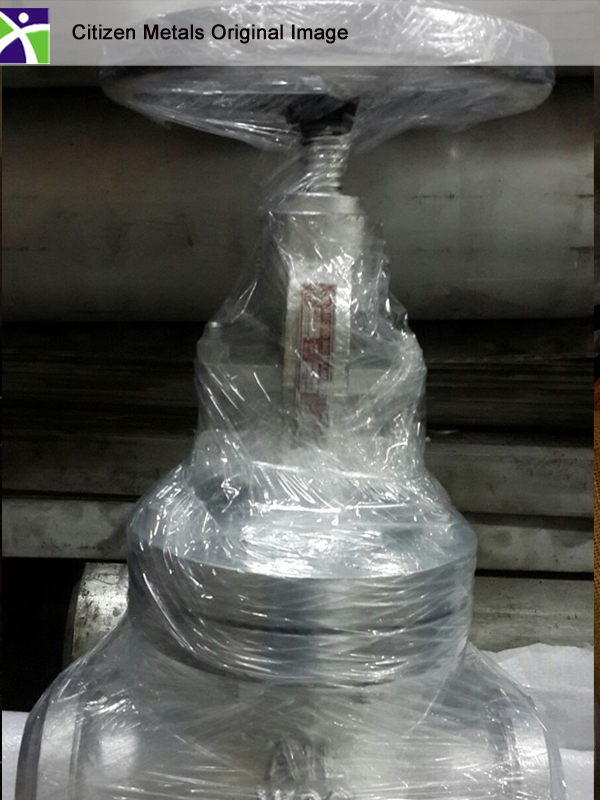

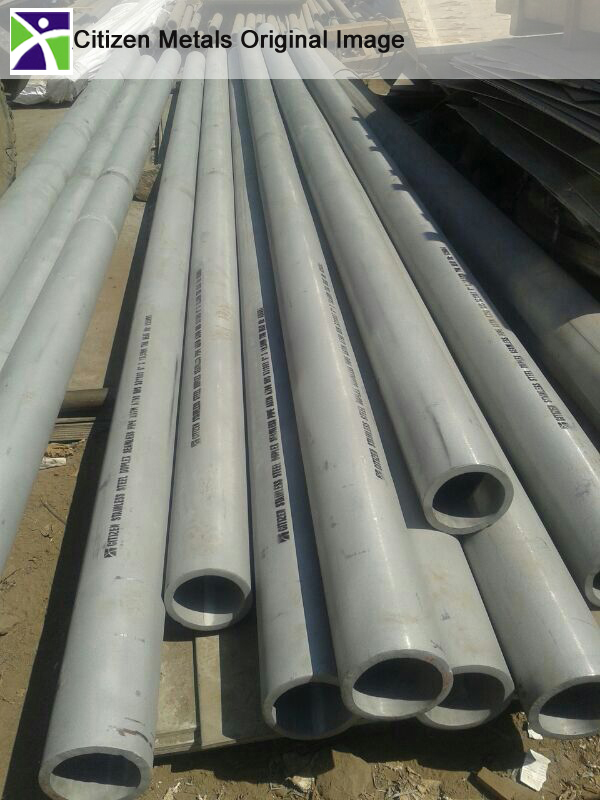

super duplex instrument tubing Supplier 2205 duplex stainless steel tubing Supplier 2205 duplex ball valves supplier 2205 duplex butterfly valves supplier

Standards : API 600/BS1414, API 598/BS EN 12266-1, ASME B 16.10, ASME B 16.5, ASME B 16.25, ASME B 16.34
Specification : ASME / ASTM A995/A182/A351/A890
Size : 1/8” to 16”
Pressure Rating : 150#, 300#, 600#, 800#, 1500#
End Connection : Screwed [NPT], Socket Weld, Flanged End, Screwed Parallel, Screwed Taper
Design acc.to API 6D, DIN3357
Face-to-Face acc. to ASME B16.10
Flange acc. to ASME B16.5, DIN EN1092
Butt Weld acc. to ASME B16.25
Test acc. to API 598, DIN3230
Fire Proof acc. to API607
Anti-H2S acc. to NACE MR-0175
Size from 2” to 42”, Pressure from 150LB to 2500LB,PN16 to PN320
Duplex and Super Duplex grades: 318LN, A182 F51, A182 F55, A479 F51, A995 4A, A995 Gr. 5A, A995 Gr. 6A, A890 Gr. 4A, A890Gr. 5A CEMN, A890Gr. 6A CD3MWCUN, A479 F55, UNS S31803, UNS S32205, UNS S32750, UNS S32760, X2CrNiMoN22-5-3, X2CrNiMoCuWN25.7.4, 1.4410, 1.4501, 1.4507, 1.4462, Ferralium 255, Uranus 45N®, Uranus 52N®

Design & Manufacture according to : BS 1868
Face to Face according to : ASME B16.10
Flange Dimensions according to : ASME B16.5
Pressure & Temperature according to : ASME B16.34
Test & Inspection according to : API 6D / API 598
Visual Inspection according to : MSS SP-55
Marking according to : MSS SP-25

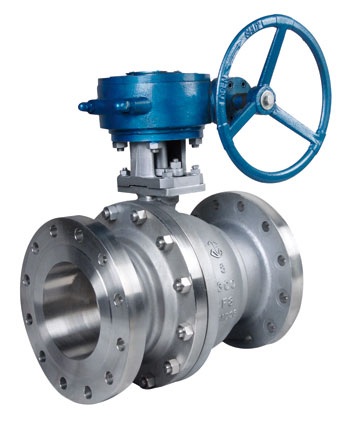

Duplex Steel Two Piece Flanged Ball Valve Duplex Steel Three Piece Flanged Ball Valve Duplex Steel API Two Pieces Trunnion Mounted Flanged Ball Valve Duplex Steel API Worm Gear Flanged Floating Ball Valve

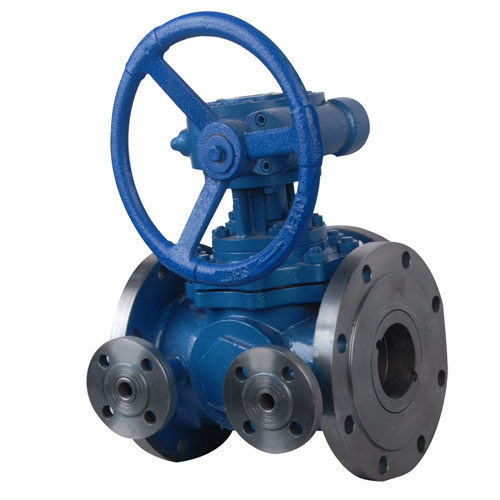

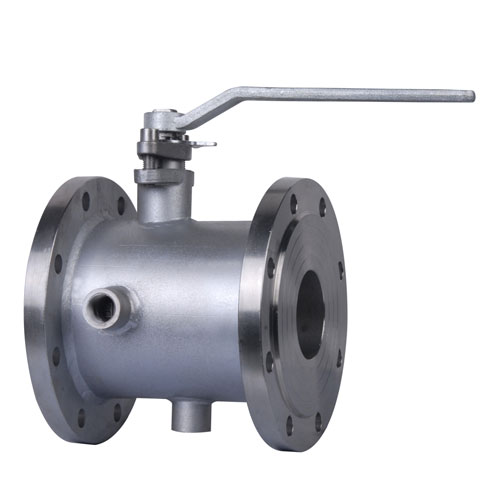

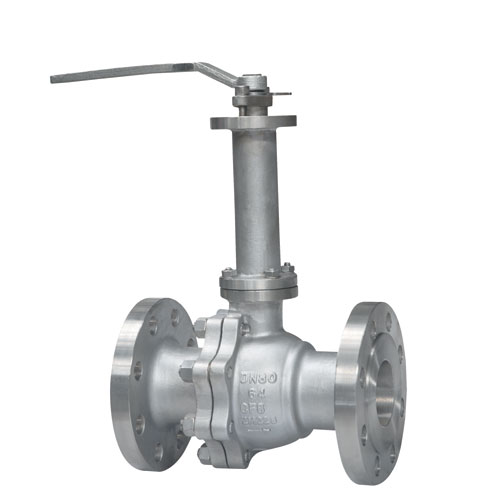

Duplex Steel Jacket Flanged Ball Valve Duplex Steel T Type Jacket Flanged Ball Valve Duplex Steel Cryogenic Two Pieces Flanged Ball Valve Duplex Steel API Worm Gear Flanged Floating Ball Valve

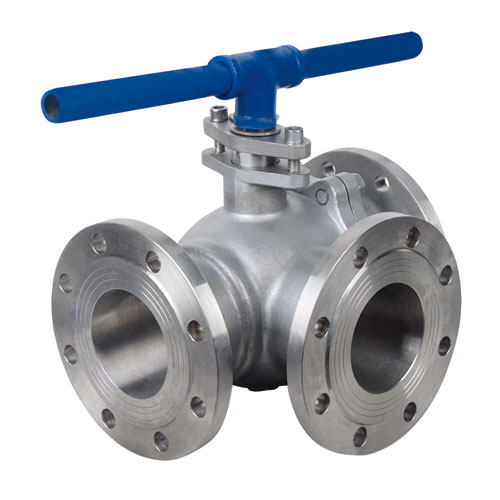

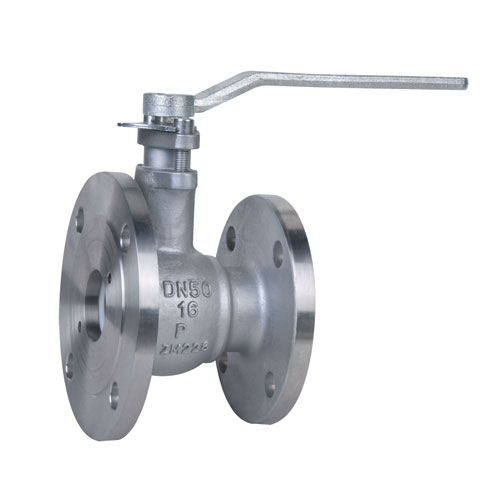

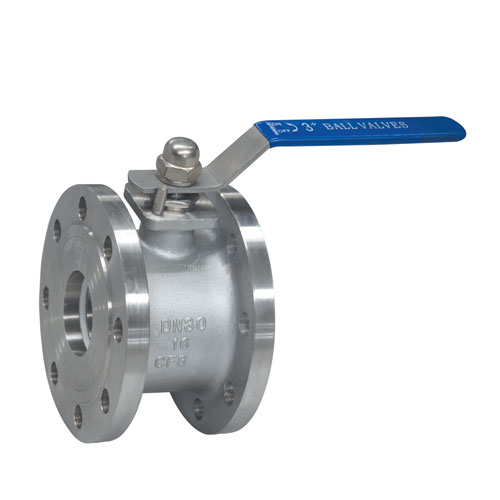

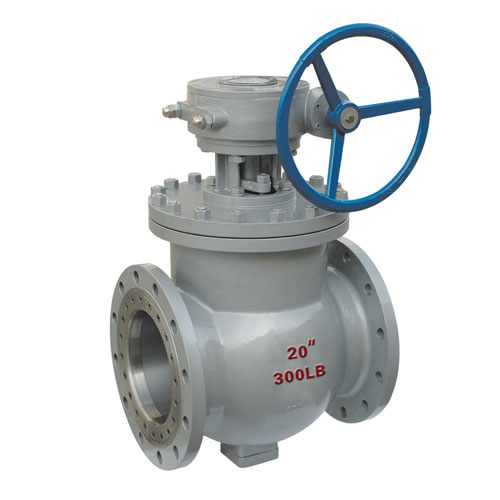

Duplex Steel Italian Short Type Flanged Ball Valve Duplex Steel Dumping Flanged Ball Valve Duplex Steel Dumping Eccentric Trunnion Flanged Semi Ball Valve Duplex Steel L Type Three Way Flanged Ball Valve

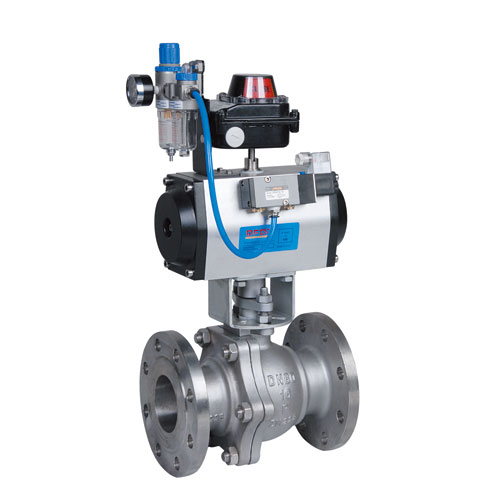

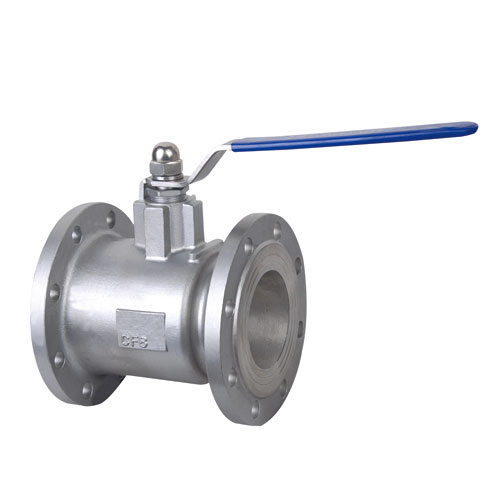

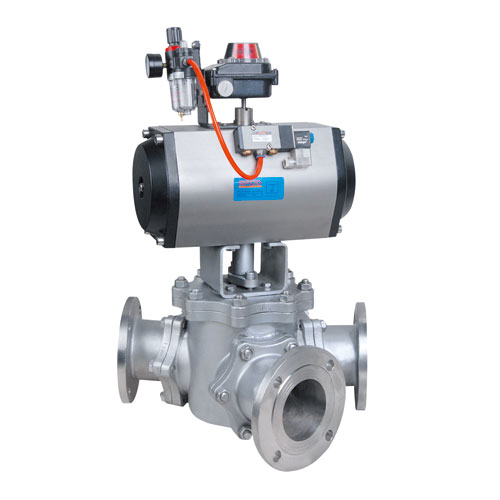

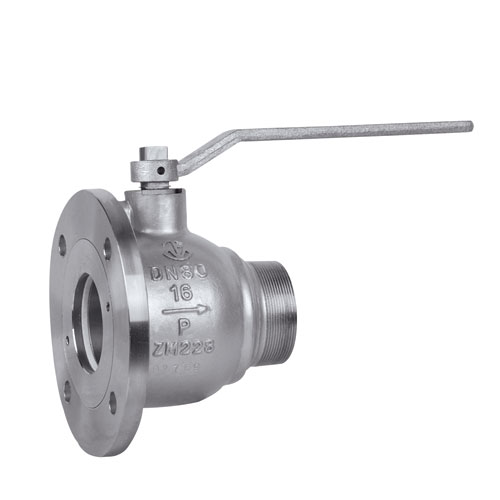

Duplex Steel NPT Threaded Dumping Flanged Ball Valve Duplex Steel One Piece Floating Flanged Ball Valve Duplex Steel Pneumatic 135 Degrees Three Way Flanged Ball Valve Duplex Steel Pneumatic Two Piece Flanged Floating Ball Valve

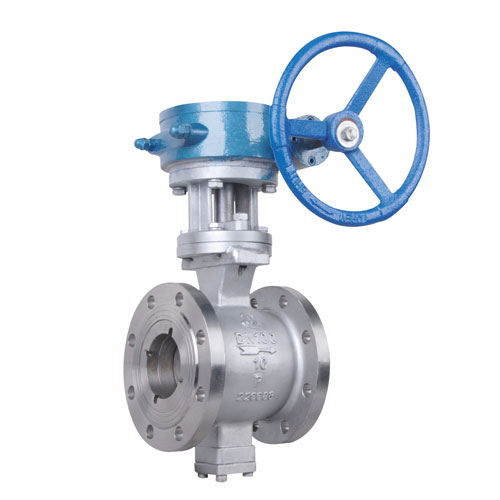

Duplex Steel Worm Gear V Type Trunnion Mounted Flanged Ball Valve

Duplex Stainless Steel Ball Valves

We are India based one of the leading manufacturers and suppliers of Duplex steel flanged ball valves. Duplex steel flanged ball valves are nothing but we can say that it is an advanced design to normal ball valves. Duplex Steel Flanged Ball valve is a quarter-turn rotational motion valve that uses a ball-shaped disk to stop or start flow. The ball rotates to a point where the hole through the ball is in line with the valve body inlet and outlet, If the valve is opened. .The ball is rotated so that the hole is perpendicular to the flow openings of the valve body and the flow is stopped, If the valve is closed.

We are manufacturing DSS flanged ball valves basically in threedesigns: full port, venturi port and reduced port. The full-port valve has an internal diameter equal to the inner diameter of the run pipe. Venturi and reduced-port versions generally are one pipe size smaller than the run pipe line size.

Types of Duplex stainless steel Ball Valves

We are manufacturing and supplying Duplex steel Ball valves in different body configurations and the most regular valves are:

1. Top entry Duplex Steel Flanged Ball valves, allow access to valve internals for maintenance by removal of the valve Bonnet-cover.In this design It is not required to be removed complete valve from the run pipe where it have been installed.2. Split body Duplex Steel Flanged Ball valves consists of a two parts, where one part is smaller comparing to the other. The ball is inserted in the larger body part, and the smaller body part is assembled by a bolted connection.

Duplex Stainless Steel Ball Valves Grades

• ASTM A182 F51 Duplex Stainless Steel Ball Valves
• ASTM A182 F53Duplex Stainless Steel Ball Valves
• UNS 31803 Duplex Stainless Steel Ball Valves
• UNS 2205 Duplex Stainless Steel Ball Valves
• 1.4462 Duplex Stainless Steel Ball Valves

Applications of Duplex Stainless Steel Ball Valves

The following are some typical applications of Flanged Ball valves:

Air, gaseous, and liquid applicationsDrains and vents in liquid, gaseous, and other fluid services applicationsSteam service applications.

Advantages of Duplex Stainless Steel Ball Valves :

Duplex Stainless Steel Ball Valves are Quick quarter turn on-off operationDuplex Stainless Steel Ball Valves are Tight sealing with low torqueDuplex Stainless Steel Ball Valves are Smaller in size than most other valves

Disadvantages of Duplex Stainless Steel Ball Valves :

Conventional Duplex Stainless Steel Ball Valves have poor throttling propertiesIn slurry or other applications, the suspended particles can settle and become trapped in body cavities causing wear, leakage, or valve failure in Duplex Stainless Steel Ball Valves.

Duplex Stainless Steel Ball Valves Design Standards and Specifications

As per API 6D, As per BS 5351 or ISO 14313:1999

Duplex Stainless Steel Flanged Ball Valves Face to Face Standard

As per ASME B 16.10

Duplex Stainless Steel Flanged Ball Valves End Connection

Flanged End ASA 150# Class, 300# Class, 600# Class, 900# Class, 1500# Class, 2500# Class

Duplex Stainless Steel Flanged Ball Valves Operating System

Manual Lever Operated | Gear Operated | Pneumatic Operated | Acuator Operated

Duplex Stainless Steel Ball Valves Testing Standards

API Standard 594covers Flanged, Lug, Wafer and Butt-welding design Ball Valves material, face-to-face dimensions, pressure-temperature ratings, and examination, inspection, and test requirements of Ball Valves.

Duplex Stainless Steel Ball Valves Inspection Standard

As per API 598or or BS 6755 Part-1.This standard covers inspection, supplementary examination, and pressure test requirements for both resilient-seated and metal-to-metal seated Ball Valves. Pertains to inspection by the purchaser and to any supplementary examinations the purchaser may require at the valve manufacturer's plant.

Duplex Stainless Steel Ball Valves Inspection Check Points

All our Duplex Stainless Steel Ball Valves are 100% carefully inspected through series of dedicate testing procedures, including:

• Material verification of Duplex Stainless Steel Ball Valves
• Dimension check such as tolerance, lobing, out-of-roundness.
• Final Mechanical Properties of Duplex Stainless Steel Ball Valves.
• Overall quality inspection (Includes eddy current (non-destructive) electric testing.)

Duplex Stainless Steel Ball Valves Seat Materials Options

• Virgin PTFE
• PEEK
• Graphite

Duplex Stainless Steel Ball Valves Marking and Identifications

Each Duplex Stainless Steel Flanged Valve is identified on proper name plate and on valve body as stated by MSS-SP 25, ASME B16.34 Name plate carries all information on rating, size, valve body and trim material, customer tags.Marking includes material designations (as per ASTM standard) and heat code and our company trade mark.

Duplex Stainless Steel Ball Valves Applications

• Desalination process Application
• Marine Application
• Seawater Application
• Power plants
• Oil and Gas Industries
• Petroleum Refineries and Petrochemicals
• Chemical Industries.
• Marine and Ship Building Industries
• Offshore Industries
• Oil well industry

Duplex Stainless Steel Ball Valves Packagings

All finished Duplex Stainless Steel Ball Valves are packed to suit the special conditions for international deliveries and can also customized as per customer's specific requirements.

Duplex Stainless Steel Ball Valves Documents

Our Duplex Stainless Steel Ball Valves products are accompanied by certified material test report 3.1 as per DIN EN 10204 / ASTM A1016. Pre material certification can be provided upon request.

We can provide our quality Duplex Stainless Steel Ball Valves with any world know third party inspection Certifications as following to make ensure the best quality

Lloyds SGS BVQI IRS

ABS KR DNV
